Tableau + Python + IoT

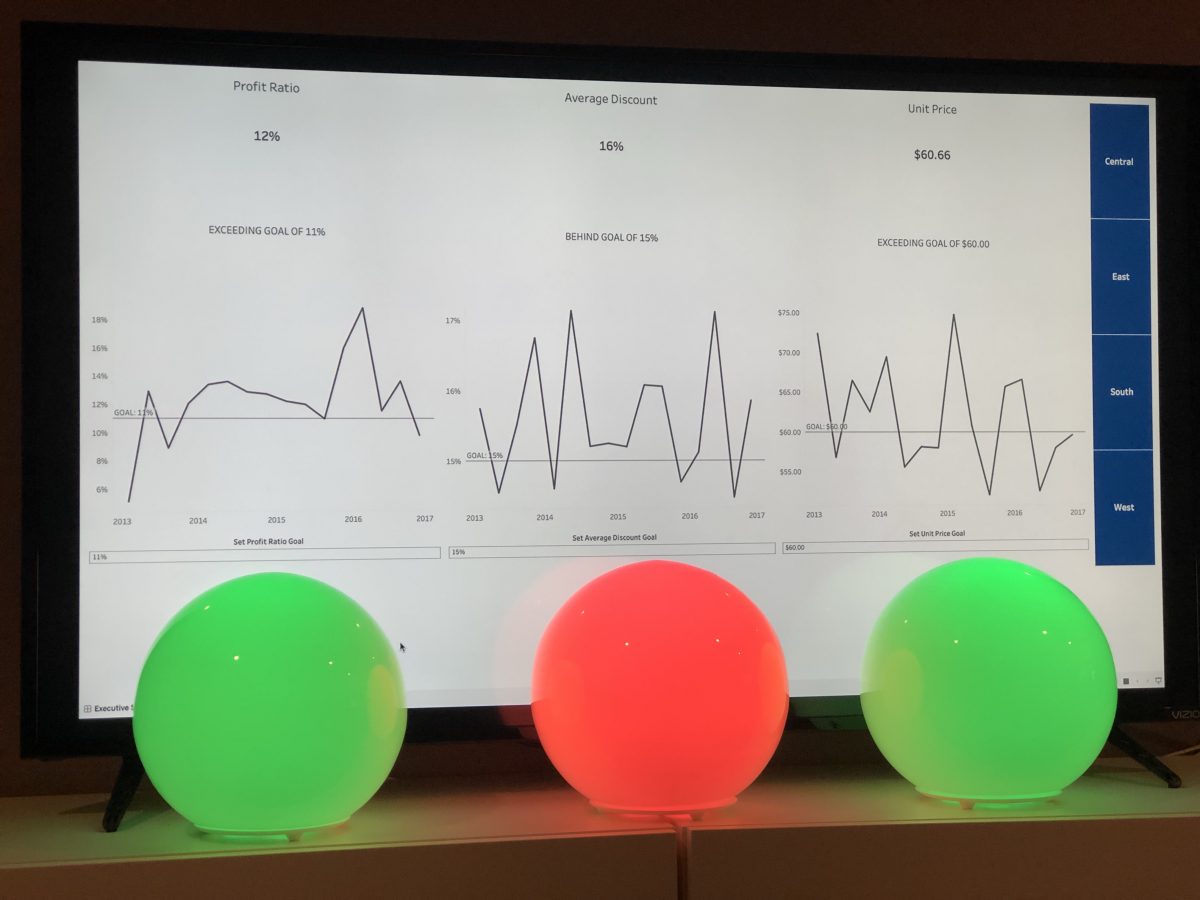

You’ve asked and it’s time to answer.  About a week ago I posted a teaser video on Twitter that showed how I integrated my home automation system with a Tableau dashboard.  The outcome of the video was dynamically changing three different lights in conjunction with KPI results.

So beyond the “hey this is really cool” factor of connecting lighting fixtures (or anything else for that matter) to a Tableau dashboard – there are some great practical reasons to do this.  A few great replies to the tweet were of the same sentiment of the thoughts coursing through my mind.  Use something like a light to easily indicate a status – it’s that step back from the KPI shape or the BAN (big ass number).  It’s something visible that you can glance at to immediately understand performance.

Next comes the technical components of how this gets put into place.  To achieve integration between my home automation system and Tableau I used Python.  It serves as a great integrator and took an idea to proof of concept quickly.  Python benefits this situation because several people have developed libraries and published them on GitHub to share.  And the other reason why Python was a great natural choice is because of TabPy.  TabPy allows you to connect to a Python server and run native Python code through calculated fields.  These calculated fields are served up on a Tableau sheet as a table calculations.  And in general when you’re using Python with Tableau it’s to get a number/string/boolean result out.

So just because you are supposed to use TabPy for something doesn’t mean you can’t extend it’s capabilities and use it in a completely different manner.  And that’s exactly what this integration project was about.

This project is also about taking a continuous project I have around home automation and folding in something new I learned (Python) with something I already love (Tableau).

My final caveat is this: if you’re looking to emulate what I did you’re going to need some hardware aka Philips Hue lights and a bridge.  In theory you can change this out with the home automation pieces of your choice.  If you’re unfamiliar with what home automation is – it basically works by having a controller (often called a bridge) and then different connected elements.  The controller is responsible for issuing commands to things like lightbulbs, locks, and your thermostat.  It is also the vehicle that takes how you interface with your home automation system (which is typically a mobile app) and translates those commands, routines, or programs to the elements in the system.

And specific to this project, I’m interfacing with my bridge (controller) using a Python library.  The library I chose to use was Phue, a Python library designed to fully interact with the Hue API.

First I downloaded and installed Phue into my Tableau-Python-Server environment (aka the one used for TabPy).  That allows me to call the library in my Python scripts that are passed through Tableau.  During the install process I also ran a simple script to connect the library to my bridge – a necessary dependency to get this all to work.  It makes sense that you’d have to be able to establish a link between the communication component and the lights you want to change.

The next parts are all reading through documentation, trial and error with Python, and fun with Tableau.  Here’s the final calculated fields that are driving results:

Profit Ratio KPI – this is something we’re all used to.  I’ve taken the basic Profit Ratio calculation and had it evaluate against a parameter.  Based on the evaluation the result will be either 0 or 25000.  The numbers 0 and 25000 correspond to the color hue input required for the lights.  0 is red, 25000 is green.

And here’s the calculated field that is pure Python.  In this scenario I’m not actually using Python to crunch anything and return a result, so you’ll notice that the return argument is a dummy number 1.

You will see it in the calculated field description in the editor within Tableau – to use SCRIPT_INT (or any of the SCRIPT functions) the format is: put your code in quotes and any inputs or arguments being used are called using _arg1, _arg2, _argN.  Those arguments follow the comma after the script.  In my example I have one argument, [Profit Ratio KPI] and that is being assigned to a in the code.

  • The basic outline of the code is as follows:
  • set [Profit Ratio KPI] to be a
  • import phue library so we can use it
  • use my bridge (that’s the bridge’s IP address on my internal network)
  • set the saturation of the lights to 254 – this is extra code, but ensures that the light has full saturation
  • set the light hue to the value of a
  • return 1 – just for fun!

If you’re extra interested, the functions from Phue require you to select which light you’re going to be controlling.  The Profit Ratio KPI light was number 25.

A trial and error moment here.  As I was testing this code I had a Jupyter notebook up and was entering the same code snippets to test it outside of Tableau.  Under normal circumstances I was able to assign a number to a without any issue, execute the code, and have the lights change colors.  Inside of the Tableau space I had to call the first index “[0]” of the argument.  I haven’t looked through the documentation for TabPy in enough detail, but it leads me to believe that arguments come in as lists instead of single variables.  So to isolate out the one result I wanted, I had to specify which element I wanted in my list of one variable.  So my KPI result is really like [25000] in Python notation and has to be called as _arg1[0] (non-Python folk: Python indexes start at 0).

Literally everything else about this was setup and build of the Tableau components.  Building out the BANs and adding parameters to dynamically input the goal variables.  Everything else was connected and working after the correct code was entered.

Here’s what one of the BAN sheets looks like:

The calculated field is present on detail, but not used anywhere else in the view.  (Which if you hovered over a default tooltip would show “1”).

Once the visualizations are set it’s just a matter of interacting with the dashboard to start seeing this integration take effect.  You’ll notice during the video that it’s not super fast – there is definitely an element of time.  And that makes sense – there is a bunch of overhead to take an argument from Tableau that has to be computed, push it through a Python server, and wait for a result to return.

This is a beautifully simple integration and demonstration of how to take the mantra of seeing and understanding data to the physical world.  With a few lines of code data-driven performance can exist in the physical world.

Exploring Python + Tableau

This month I’ve been taking a night class at Galvanize aimed at being an introductory to Python and Data Science.  It’s a 4 night/week boot camp with a mix of lecture and hands-on assignments.  My primary interest with the course was the data science component, but I also felt extremely strong about the necessity to have a programming language in my toolkit.

To add context – I’ve taken formal classes in C++ and Java, know enough HTML/Javascript to be dangerous, and can leverage SQL when forced.  I’ve always had very positive retrospective moments about learning C++ and particularly think the act of writing pseudo-code has been a skill I’m lucky to have.

When learning anything new I think it’s required to put it in action.  So I have some small immediate goals related to Python that focus on integration or utility to Tableau.  In fact earlier this year I dabbled in the topic and spun up a Linux box to go through the published exercise of using Python+NLP.  Specific to that exercise I actually did the NLP processing within Python and exported the results.

This leads me to Wednesday, where I was presented with a new opportunity to combine skill sets.  The premise was pretty straightforward – take concepts of Monte Carlo scenarios/simulations/method for corporate finance and use it to develop visualizations.  The key to this is that a historic input or perhaps expected input (likely derived through some analysis) and it’s corresponding standard deviation are used along with the probability component of random numbers bounded to a normal distribution.  A fancy way of saying (at least for this example) – generate numbers based on X, it’s standard deviation, and random numbers.  Specifically of the format Result = X + (SD*RandomNumber).  And several results are computed.  It’s like rolling dice over and over again and seeing what happens.

So this initially was conceived and in working order in Excel – and the kicker of why it works in Excel is a function that does that tidbit I mentioned above “random numbers bounded to a normal distribution.”  The functions used to generate that aren’t available in Tableau.  And this is where Python came to the rescue.

Because Python has depth in mathematical libraries it seemed like a natural choice to outsource the computation of these random numbers to it.

To get started I read through this community article: Tableau Integration with Python – Step by Step.  It provides the pertinent components of how to get Tableau and Python to talk – most specifically how to use the SCRIPT_() functions in Tableau to pass through Python code to TabPy.

Once that was done I needed to develop a data set to use under the hood of the workbook (remember pretty much everything is parameterized – so there’s no data to read in).  I ended up making an Excel spreadsheet with 1,000 rows – each with a row number (1 to 1,000).

The simulation results are this calculation:

So you can see – 2 parameters (purple) and then one calculated field.  The calculated field is where Python jumps on the scene.

Breaking this down a bit further:

  • SCRIPT_REAL() – takes in blocks of code within quotation marks followed by arguments (that must be aggregated).   It outputs a real number (opposed to integer, string, or boolean)
  • Python script is pretty basic: import 2 different libraries
    • norm from scipy.stats – this gives me the function norm.ppf() that allows the conversion of a random number to be in that normal distribution format
    • random.random() – just a random number function
    • Named n as a list and set it equal to the output of my functions
    • returned the value n

I noticed when I did this I had to supply an argument (essentially a comma with SOMETHING after it to avoid errors in my calculated field).  So I added on a simple SUM(1).  This calculation is being called at a row level, so it’s just 1 and not used anywhere.  If I were going to use it, I’d need to include _arg1 (or _arg2, _argN) and follow up with those input arguments separated by commas.

SCRIPT() calculations always come on as Table Calculations – so you’ll see the icon and have all the nuance of Table Calculations.  Namely that they’re computed in the view and you can’t make something like bins with them or use them for sorting.

Here’s the final dashboard (in it’s initial state):

You’ll see the different inputs and the ability to set the number of simulations.  This is simply a parameter that limits the row number of the underlying data.

As I was playing around this – one of the keys to this analysis is to show the spread of the different results (ideally maybe a histogram).  So I stuck with confetti for now, but added on reference bands and lines.  Additionally I colored the simulation results using a custom binning technique where I find the range between Min & Max, divide that by 10 and then create bins with the Min+ multiple of range/10.  Here’s the calculated fields:

This allows the end user to click on the color legend to see the number of simulations within each “bin.”  And to see through random chance how the simulations really distributed.

I also made this sheet, which has some advantages of expressing that concept a bit more clearly.  Through 110 simulations – here’s where the results fell out.

In terms of the visual outputs – I’d still say I’m at an exploration stage of finding what works best.  However, from a Python/TabPy angle – I was pretty enthused to put it all in action.  And most specifically one thing I appreciate about this is that when the simulation number is changed, it’s the act of running a “new simulation.”  Same with all of the parameters – but something very satisfying about the act of data changing on the fly.

Next week we’re finally tackling NumPy and Pandas – so I expect some inspiration to come.
